City Borehole Pumps

City 4in and 6in submersible borehole pumps are available in more than 100 models, with motor power up to 40 HP. They rely on quality and value-for-money to maintain their place in the World market.

Now their full range - from 1 cubic meter per hour to 60 cubic metres per hour with heads of over 500 metres - is available to drillers and installers in the UK, exclusively through Amos Pumps.

Single and three-phase versions are available, with up to 3 HP for single phase motors and 40 HP for three phase. All accessories are supplied, including a waterproof heat-shrink cable joint, and, with single-phase models, Amos Pumps own easy to install starter box containing start capacitor and overload cut-out with manual reset.

Amos Pumps also offer a low-level control box, cable and probes for use where there is a risk of damage through dry-running, and a full range of optional extras, making it easy for installers to be sure of all they need from one reliable source.



Low-level Control Boxes
Amos' spacious single-phase and three-phase control boxes feature DIN-rail component mounting to ensure easy access and component replacement if needed. Capacitor is included, together with spare terminals so that float switches or pressure sets can be wired in.

Borehole accessories
The Amos Pumps built and designed low-level control box, centre right, with probes, borehole pump cable, support rope and standard borehole pump control box

Motor replacement service
Borehole pump breakdown can lead to loss of production for industrialists and crop damage for growers. Frequently, the problem is traced to motor burn-out, leaving the pump itself still in good condition.

Amos Pumps are saving their customers cash and downtime by offering a speedy motor replacement service for units designed to NEMA standards. Contact our sales office for details.



Borehole pumps suitable for 4 inch boreholes

Click for Downloads

Pump model

Best efficiency
point

Motor
power

Maximum head
in metres

Delivery
BSP female

Number
of models

1SP

1 cu m per hour

0.33 HP to 3 HP

362 at 5 litres/min

1.25in

7

2SP

2 cu m per hour

0.5 HP to 5.5 HP

465 at 10 litres/min

1.25in

8

4SP

4 cu m per hour

0.75 HP to 10 HP

495 at 20 litres/min

1.25in

9

6SP

6 cu m per hour

0.75 HP to 10 HP

365 at 25litres/min

2in

9

8SP

8 cu m per hour

1 HP to 10 HP

272 at 40 litres/min

2in

8

10SP

10 cu m per hour

1.5 HP to 10 HP

216 at 50 litres/min

2in

7

12SP

12 cu m per hour

1.5 HP to 10 HP

176 at 50 litres/min

2in

7

15SP

15 cu m per hour

2 HP to 10 HP

145 at 50 litres/min

2in

6



Borehole pumps suitable for 6in boreholes



Pump model

Best efficiency
point

Motor
power

Maximum head
in metres

Delivery
BSP female

Number
of models

9SP

9 cu m per hour

3 HP to 15 HP

317 at 50 litres/min

3in

7

12SP

12 cu m per hour

3 HP to 20 HP

371 at 50 litres/min

3in

9

18SP

18 cu m per hour

5.5 HP to 30 HP

350 at 50 litres/min

3in

9

27SP

27 cu m per hour

7.5 HP to 40 HP

356 at 100 litres/min

3in

9

36SP

36 cu m per hour

5.5 HP to 30 HP

256 at 100 litres/min

3in

9

44SP

44 cu m per hour

5.5 HP to 40 HP

228 at 200 litres/min

3in

10

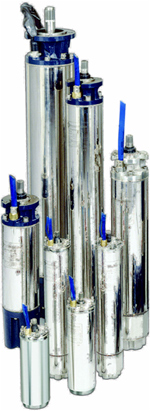

Franklin & City Submersible Pump Motors

Borehole pump motors are stocked in large quantities for immediate despatch, sizes include -

230 volt, single phase, 50Hz. - 0.5hp, 0.75hp, 1.0hp, 1.5hp, 2.0hp & 3.0hp

400 volt, three phase, 50Hz - 0.75hp, 1.0hp, 1.5hp, 2.0hp, 3.0hp, 4.0hp & 5.5hp with a limited number of larger hp.

60Hz are available.
Full range of motor start capacitors stocked, also motor end cables with plugs.
Motor/pump connections are built to NEMA dimensional standards.

Insulation: class F, protection: IP 68, water temperature: up to + 30 degrees centigrade, starts per hour: 25 at regular intervals

Borehole Motor Cable

1.5 & 2.5 sq.mm, HO7RNF, 4 core, stocked on 500 metre drums, part drums of other sizes, all sizes can be supplied in cut lengths. Heat shrink joint kits available to suit cable size.

Distributor Network

If you require sales, service or maintenance on your borehole pump or even a new borehole with all the pumping and water purification equipment fitted, contact us so we can put you in contact with your local profesional Amos Pumps Distributor.
